dNa-PatchBay

The dNa-PatchBay is a handy tool to simplify routing in large and complex Scope projects.

Highlights:

• Easy selecting source/destination
• Integrated metering
• The patching uses NO DSP!!
• Custom name the In/Outs per pair
• 96kHz capable
• Black / Creamwhite framecolor
• BEST OF ALL: FREE!!!!!!!!

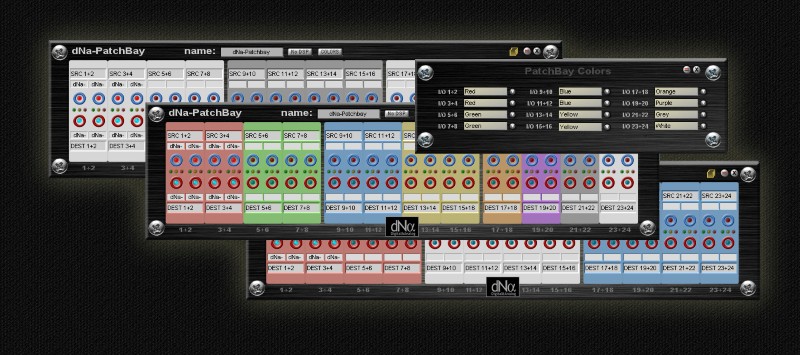

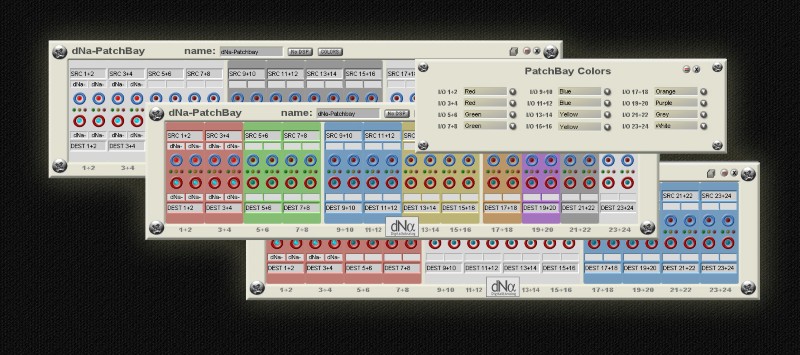

View Hires: Screen Black  Screen Cream

Click here to shop dNa @ soniccore

Why to use?

Routing can sometimes be a hassle in Scope, especially as projects get bigger and bigger....so much wiring, and it can be hard to find all your devices and clicking the in/output. Therefor: just load devices and your in and outputs, and patch everything from this patchbay. You can load several patchbays, and custom name the patchbay for better overview PLUS of course you can name the sources/inputs and destinations/outputs on the patchbays. Just like you would in a real studio...Tidy up all those cables!!

Specifications/Features:

  • Easy to use: Select sources/destinations from a rightclick menu;
    you can even select more than 1 destination from the menu.
  • LED's indicate when connected
  • Integrated LED meters for easy level-indication
  • Name your patchbay for good overview
  • Name the in- and outputs also for good overview (paired)
  • Give your pairs a color for even better overview (red/orange/yellow/green/blue/purple/grey/white)
  • The routing does NOT USE ANY DSP!!!!
  • The Patchbay uses only 10% of 1 older 60mHz SHARC for metering, which can be disabled!!!!
  • Saves in screensets
  • Compatible with Scope software 5x and 4x
  • Compatible with all Scope hardware, PCI cards and Xite
  • 96kHz capable

DSP-Usage:

The dNa-PatchBay itself uses NO DSP power, only the metering uses around 105 DSP cycles on the old 60Mhz SHARC (older CW cards). (Around 10% of one 60Mhz SHARC)

Version history/Change log:

-v1.0: Release. Freebee release along with special mailing (for first 100 customers)
